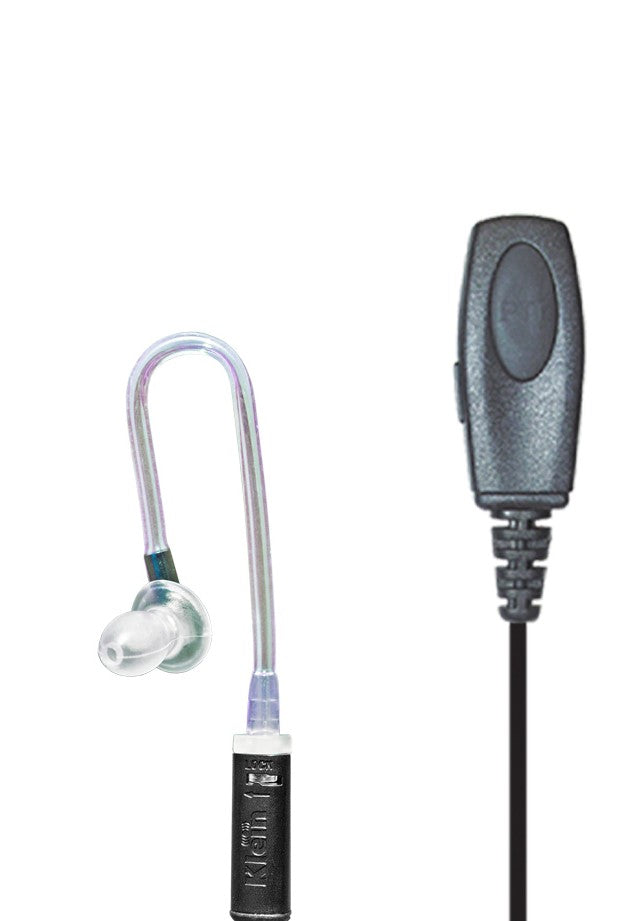

Klein Patriot Pro Wired PTT Headset

The PATRIOT PRO Wired PTT Headset includes a replaceable audio tube and earpiece for comfortable, all day use. The PATRIOT PRO’s 2-Wire design allows for the headset cords to be clipped over or under clothes or a uniform, while on the job. Klein custom designed the PATRIOT PRO headset to reliably connect to Sonim’s SecureAudio Connector on the XP10, XP5plus, XP5s, and XP8 handsets. This allows the PATRIOT headset connector to screw into the handsets. The PATRIOT PRO headset has a large, easy to access PTT button, compatible with heavy work gloves.

• Compatible with Sonim XP10, XP5plus, XP5s and XP8 handsets
• Push-to-Talk and full-duplex wired headset
• Professional 2-Wire surveillance earpiece with audio tube
  for comfortable, all day use
• Noise reduction microphone
• Front-facing dual PTT button switches for redundancy
• Clear quick-disconnect audio acoustic coil tube
• Built-in clip to easily attach headset cable to uniform
• Omni-directional Microphone
• Microphone Sensitivity -36dB±2dB
• Microphone Impedance Max.2.2K Ω 1kHz (RL-2.2K Ω)
• Microphone Signal / Noise Ratio +58dB @ 1kHz (0dB=1V/Pa)
• Microphone Current Consumption Max: 0. 5μA RL=2.2KΩ Vs=3.0V(DC)
• Microphone Max Sound Pressure Level 115dB S.P.L
• Speaker Sensitivity 108 @ 1kHz (dB SPL)
• Speaker Impedance 200 @ 500 Hz (Ohms)
• Speaker DC Resistance Impedance 92 (Ohms)
• Designed and Assembled in the USA
• Third party lab tested to meet IP-67 rating standard
• 3 Year Comprehensive Warranty
• Operating Temperature -40°C - +80°C
• Klein PATRIOT PRO Length 78 inches, Weight 88g
• Top Cable Length from Splitter 26 inches
• Bottom Cable Coiled Length 8 inches
• Packaged Product Dimensions 5 x 6 x 1.5 inches, Weight 130g
• Packaged Part No. PATRIOTP-SO3-WP-P, Packaged UPC 096962277062
